The special assembling technology of synchronous pulley and motor is adopted, and the synchronous belt with the latest technology in Japan
1. Product Introduction
High strength equipment fuselage, CNC processing to ensure the flatness and verticality required for assembly.
It’s very smooth and ultra-low noise when working at high speed. The surface of aluminum alloy is specially
treated with non-stick, and the cleaning of the machine becomes very easy.
The special assembling technology of synchronous pulley and motor is adopted, and the synchronous belt with the
latest technology in Japan is matched to thoroughly solve the problem of tension and loosening of synchronous
belt after long-term use.
Modular assembly process, each key component and key position can be separately disassembled, accidentally damaged
components can be quickly replaced.
2. Product Parameter (specification)
| Product specifications | |||
| Product model |
W-DR331S |
W-DR331B |
|
| Product description |
Synchronized pulley drive mechanism |
Ball screw drive mechanism |
|
| Scope of work | X axis |
300mm |
300mm |
| Y axis |
300mm |
300mm |
|
| Z axis |
100mm |
100mm |
|
|
Y Workbench load |
10kg |
20kg |
|
|
Z-axis load |
4.5kg |
10kg |
|
|
Maximum speed |
0.1～800/350 X＆Y/Z(mm/sec) |
0.1～500/250 X＆Y/Z(mm/sec) |
|
|
Repetitive accuracy |
±0.02mm |
±0.01mm |
|
|
Control system |
Optional dispensing machine, screw machine, soldering machine and other control systems |
Optional dispensing machine, screw machine, soldering machine and other control systems |
|
|
Motor system |
W-robot stepper motor, optional closed-loop stepper motor | W-robot closed-loop stepper motor. | |
|
drive system |
Synchronous pulley |
Ball screw |
|
| Shape size |
Depth |
574mm |
574mm |
|
Width |
518mm |
518mm |
|
|
Height |
603mm |
603mm |
|
|
Body weight |
48kg |
55kg |
|
|
Non-standard customization |
Non-standard customizable size |
Non-standard customizable size |
|

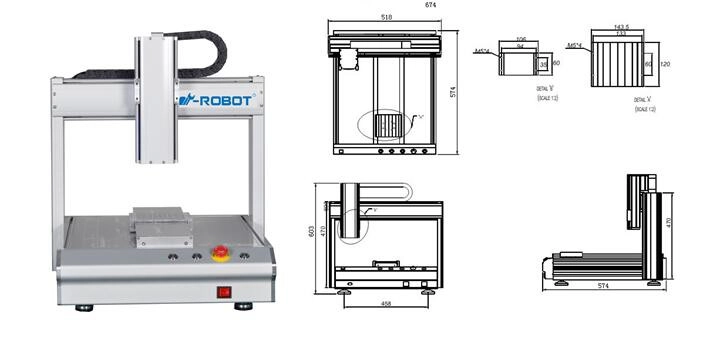

3. Pictures for reference:

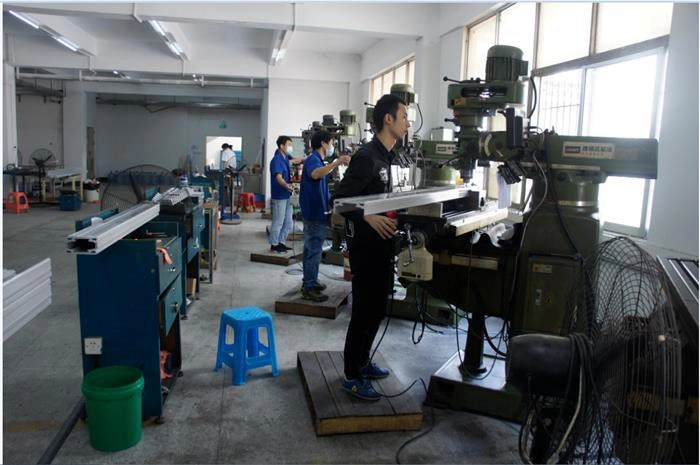

4. Production:
