2023-05-16Semi-closed Screw Drive Linear Actuator
Ball screws get their name from the re-circulating ball bearings that fit between arch-shaped screw threads and corresponding threads in the nut.
Product Parameter (specification)
AC motor power | 400W/750W | ||||||||
Ball screw ¢ | C level (C7) | 25 | |||||||
p level (C5) | 25 | ||||||||
Repeatability | C level (C7) | ±0.01 | |||||||
C level (C5) | ±0.006 | ||||||||
Ball screw lead (mm) | 5 | 10 | 20 | 40 | |||||
Maximum speed (mm/sec) 3000 Motor speed (rpm/mim) |
250 | 500 | 1000 | 2000 | |||||
Maximum payload (kgs) |
Horizontal | 120/120 | 105/115 | 75/83 | 35/50 | ||||
Vertical | 45/50 | 35/40 | 20/25 | 5/10 | |||||
Rated thrust(N) | 1388/2563 | 694/1281 | 347/640 | 170/320 | |||||
Linear guide (mm) | 20×15.5 -2 | ||||||||
Coupling (mm) (motor side) ×(ball screw side) |
11×12 | 14×12 | 14×12 | 16×12 | 19×12 | ||||
Motor output power | 200W | 400W | 750w | ||||||

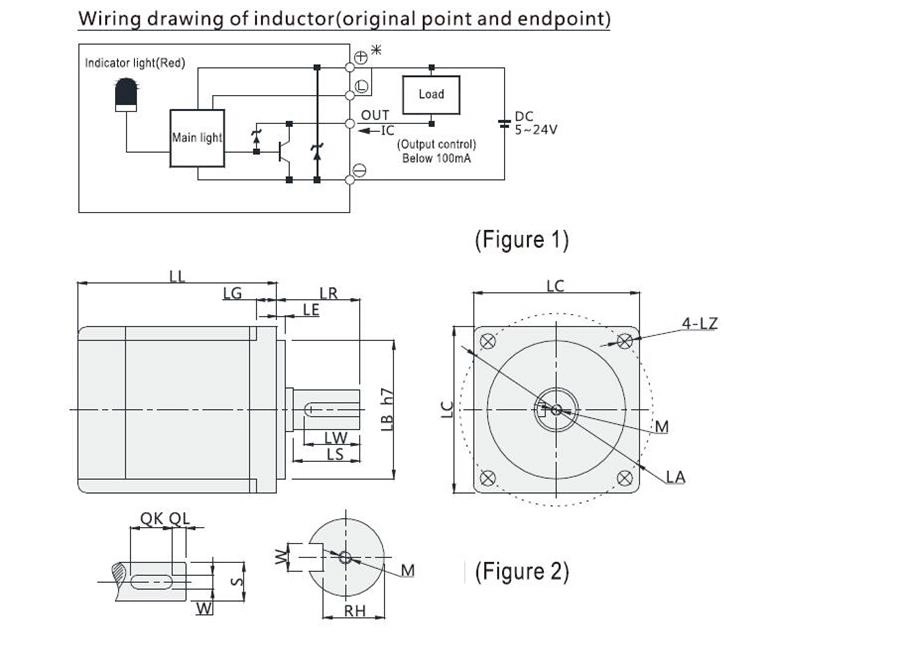

Home sensor | Outside: EE-SX672 (NPN) EE-SX672 P(PNP) | ||||||||
Outside guide: EE-SX674 (NPN) EE-SX674 P(PNP) |

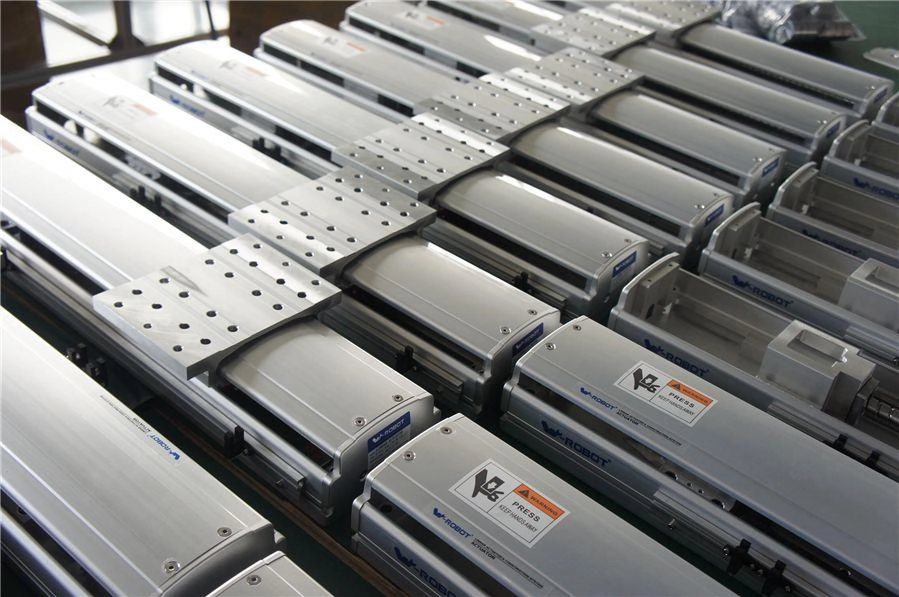

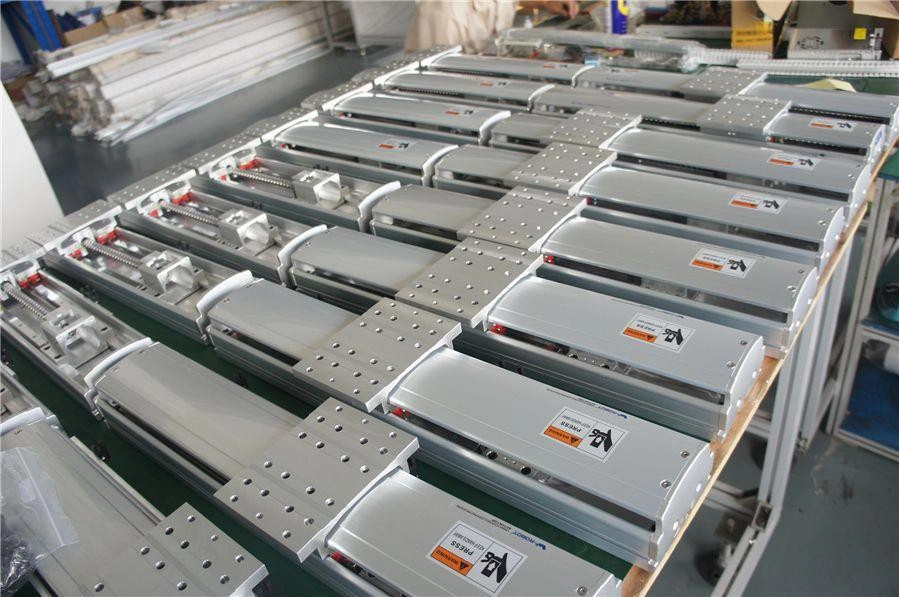

Production detail:
5. Product qualification:

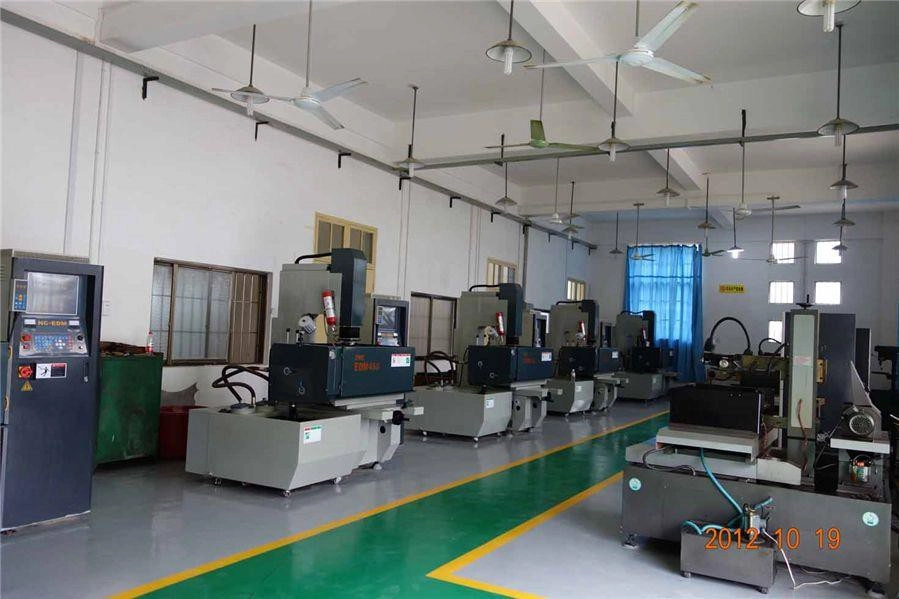

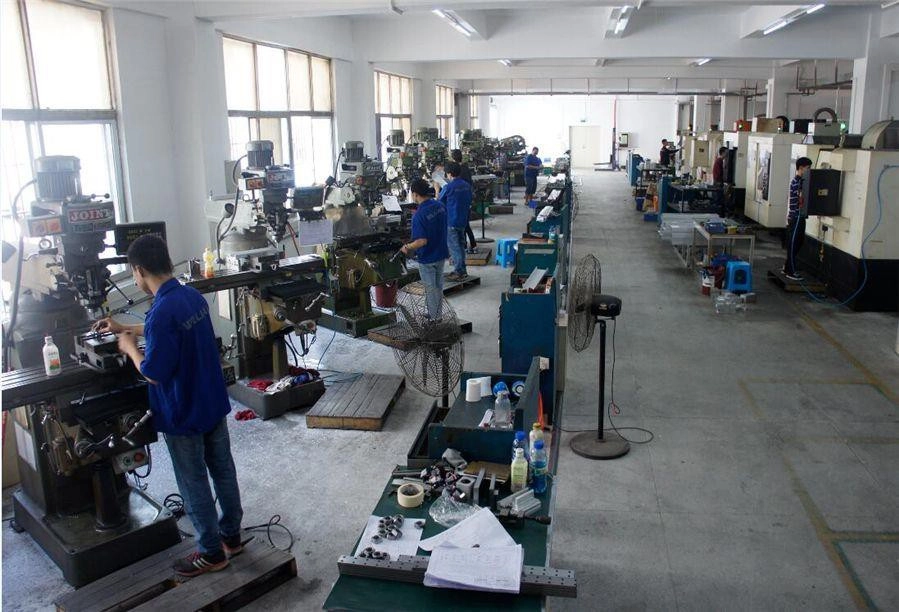

Deliver, shipping and serving:
